Bentonite Moisture Retaining Compound

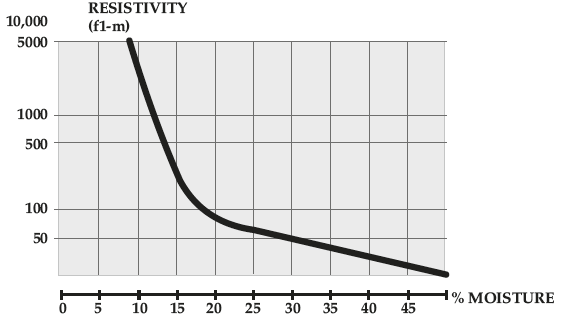

Bentonite, moisture retaining compound is produced from highly hygroscopic grades of bentonite. It can be used as backfill material to maintain moisture levels in areas of dry and rocky terrain. It absorbs and retains moisture for very long periods and tends to reduce soil resistivity to a certain extent.

Properties



Low natural resistivity

Highly hygroscopic

Controlled swelling to avoid loss of contact due to change in moisture levels.

Ability to absorb moisture from surrounding soil

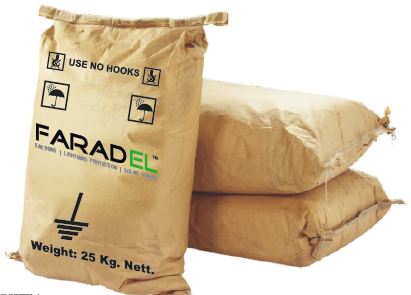

Faradel Recharge Compound

Faradel, earthpit recharge compound, is a high conductivity & high ion-content compound developed to give a new lease of life to dead earthpits. Due to ageing & formation of rust, and loss of electrolytic properties of the surrounding soil, earthpits exhibit high earth resistance values. Most of the times, it is not a viable option to install new earthpits to replace the old ones. Under such conditions Faradel, earthpit recharge compound is the most suitable option.

Formulated to perform, this compound energies the soil surrounding the electrode by improving it’s ionic potential. this enhances the conductivity of the soil in the immediate vicinity of the electrode thereby improving the earth resistance of the earthpit. It also attacks the rust formed on the electrodes so that conductivity of the electrode is improved.

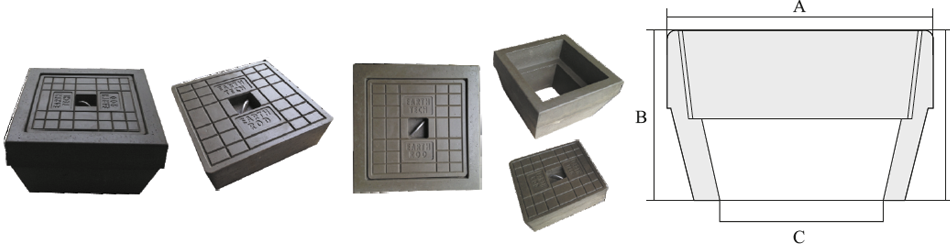

Concrete Inspection Pit

Properties Low natural resistivity Highly hygroscopic Controlled swelling to avoid loss of contact due to change in moisture levels. Ability to absorb moisture from surrounding soil The concrete inspection pit is load rated to 5,000 Kg. and is suitable for most types of Earthing and Lightning Protection Installations. It can be installed at Walkways, Parking Areas, Heavy Traffic Areas, Lawns & Tiled Areas and can be jelled with the floor surface by painting it, to increase it’s Aesthetics.

Parameter Material Dimensions (mm) Weight Load Capacity
Specification Concrete with stainless Steel lifting Hook 320(W) x 320(L) x 192(H) 30 Kgs. 5,000 Kgs.
