Maintenance Free Electrodes

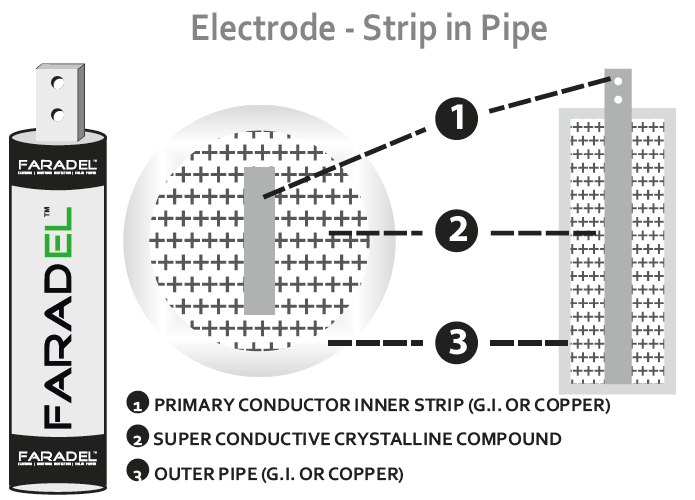

The Faradel range of maintenance free electrodes are designed to withstand highest levels of corrosion. These electrodes are capable of safely dissipating high magnitude fault currents safely to the ground. Manufactured from superior quality galvanized steel / copper pipes, these electrodes are extremely robust and built to last for a lifetime. The conductive compound filled inside these electrodes not only increases the surface area but also prevents the corrosion of the primary conductor. Available in two variants, strip-in-pipe & pipe-in-pipe these electrodes are tested by Central Power Research Institute (CPRI) and surpass the requirements of IS-3043.

GI ELECTRODES

GI PIPE GI STRIP ELECTRODES

MODEL Length Pipe Dia Primary Conductor Primary Conductor
G-150 1000 mm 50 mm Strip 40 x 6 x 1000mm
G-240 2000 mm 40mm Strip 25 x 6 x 2000mm
G-250 2000 mm 50 mm Strip 40 x 6 x 2000mm
G-280 2000 mm 80 mm Strip 50 x 6 x 2000mm
G-340 3000 mm 40 mm Strip 25 x 6 x 3000mm
G-350 3000 mm 50 mm Strip 40 x 6 x 3000mm
G-380 3000 mm 80 mm Strip 50 x 6 x 3000mm

GI ELECTRODES

GI PIPE IN PIPE ELECTRODES

MODEL Length Outer Pipe Dia Inner Pipe Dia Strip Size
G-250 PIP 2000 mm 50 mm 40 mm 25 x 6 mm
G-280PIP 2000 mm 80 mm 50 mm 40 x 6 mm
G-350PIP 3000 mm 50 mm 40 mm 25 x 6 mm
G-380PIP 3000 mm 80 mm 50 mm 40 x 6 mm

COPPER ELECTRODES

MODEL Length Pipe Dia Pipe Type Primary Conductor Strip Size
GC-150 1000 mm 50 mm GI Copper Strip 40 x 6 x 1000 mm
GC/CC-250 2000 mm 50 mm GI / Cu Copper Strip 40 x 6 x 2000 mm
GC/CC-280 2000 mm 80 mm GI / Cu Copper Strip 50 x 6 x 2000 mm
GC/CC-350 3000 mm 50 mm GI / Cu Copper Strip 40 x 6 x 3000 mm
GC/CC-380/ 375 3000 mm 80 / 75 mm GI / Cu Copper Strip 50 x 6 x 3000 mm

We also manufacture Electrode as per clients’ specifications.
