Copper Bonded Earth-rods

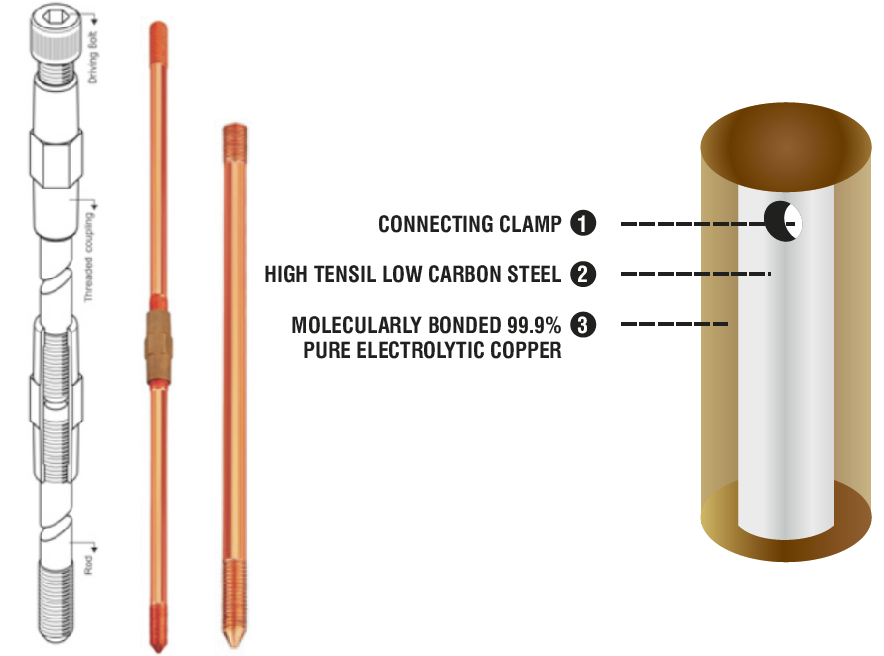

Manufactured from high tensile low carbon steel by molecularly bonding 99.9% pure electrolytic copper, there earth rods conform to BS 4360 grade 43A. Each rod is treated with Benzol triozole derivatives to prevent oxidation of copper bonding. The threads are formed by roll threading process which ensure strength and maintain the molecularly bonded copper along the full length of the threads. The rods can be deep driven manually or by using power hammer.

MODEL Length (mm) Rod Dia (mm) Rod Dia (inches)
CBR-414 1200 14.2 5/8”
CBR-417 1200 17.2 3/4”
CBR-514 1500 14.2 5/8”
CBR-517 1500 17.2 3/4”
CBR-614 1800 14.2 5/8”
CBR-617 1800 17.2 3/4”
CBR-814 2400 14.2 5/8”
CBR-817 2400 17.2 3/4”
CBR-1014 3000 14.2 5/8”
CBR-1017 3000 17.2 3/4”

COUPLER HEAVY DUTY

These couplers are made of high grade material for higher strength with counted bore for protecting the rod threads from damage.

ROD TO TAPE CLAMP - TYPE 'A'

A variety of earth rod clamps suitable for different applications. Conductivity, Mechanical strength and corrosion resistance are important considerations in clamp design to ensure and earthing system perfect for the life time of the system all clamps are made of high strength copper alloys bodies and screws of aluminum bronze, phosphor bronze, and stainless steel etc... (commercial Brass is never used) .

Used for joining earth rods to copper tapes, these clamps are available to suit different sizes of earth rods and copper tapes.

ROD TO CABLE CLAMP - TYPE 'G'



These clamps are used for joining earth rods to copper cables.

ROD TO TAPE CLAMP - TYPE 'E2'

These clamps are used to connect tape to the earth rod. This clamp is provided with additional plate to fix the tape in vertical position also.

EARTH BARS AND DISCONNECTING LINKS

Earth Bars are an efficient and convenient solution for providing a common earth point to connect to the main earthing System. Integral disconnecting links are provided for isolation at the time of testing. These earth bars come in variety of specifications and sizes to suit different applications, the standard sizes are shown in the table with many variations.
